CNC lathe Controller: 1)With USB interface ,it supports file operation in flash disk,system configuration and software upgrade 2)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch

Updated 2 Axis Cnc Controller Lathe


CNC lathe Controller: 1)With USB interface ,it supports file operation in flash disk,system configuration and software upgrade 2)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch
Send Inquiry



1000MC-3

Number of control axes

2 axes

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Limit function

Software limit, hardware limit

Pre-reading function

Short line preprocessing 10,000 lines

Password protectionMulti-level password protection
Compensation functionKnife compensation, between compensation, screw compensation, radius compensation
Acceleration and deceleration controlLinear acceleration and deceleration, the number of additions and subtractions
FunctionATC+PLC and macro function
Encoder linesAny setting
User macro programYes
MenuEnglish menu
Produce time5~7 days except for Customized logo or package


ATC function：Electric Turret/Binary Turret/Servo Turret/Special Turret


PLC functions:

1) Support PLC warning and PLC alarm.

2) Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.


1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

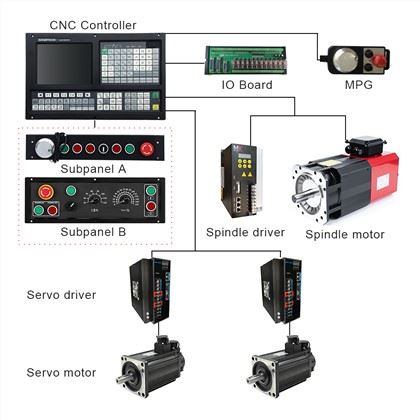

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.


7.-()

8.-&&()

9.-&()


FAQ

1. who are we?
We are the cnc spare parts supplier with more than 10 years experience.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
servo motor,servo drive,cnc controller,planetary gearbox,gear and rack

4. why should you buy from us not from other suppliers?
We have 10 years automation sales and production experience, which can offer customer professional technical support.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese



If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement,  pls do not hesitate, we must do good support to you! come on!
