CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

Cnc Lathe Controller 2axis Delixi Similarly Gsk 2 Axis Controller


CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)
Send Inquiry



1000MC-3

Number of control axes

2 Axis

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Spindle functions

Gear, dual analog control, rigid tapping

Pre-reading function

Short line preprocessing 10,000 lines

FunctionATC+PLC and macro function
Encoder linesAny setting
User macro programYes
Our Services12 Months warranty；Provide professional CNC solutions；
Compensation functionKnife compensation, between compensation, screw compensation, radius compensation
Security function

Emergency stop, hardware travel limit, various stored travel checks, axis interlock, data backup and recovery

Thread function

1) Curved ordinary thread (following the spindle) 1 flexible tapping

2) Single/multiple metric inch straight thread, tapered thread and face thread, equal pitch thread and variable pitch thread

3) The length, angle and speed characteristics of thread run-out can be set by program and parameters

4) Thread pitch: 0.001mm~ 500mm (metric) 0.06 thread/inch~25400 thread/inch (imperial)


1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

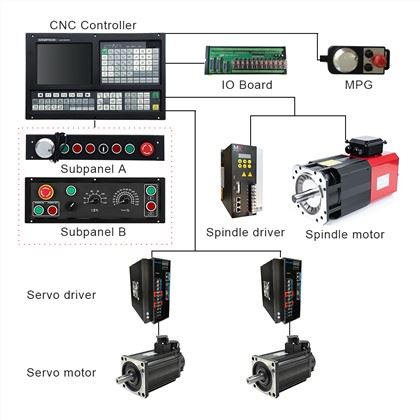

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC


7.-()

8.-&&()

9.-&()


FAQ

Q1. Can you engineer come to our place to help with machine installation & commission?

A: Yes, our engineers are available to travel to your place. Round flight tickets &

accommodation will be at your cost.


Q2. If I can't know how to operate. Can your engineer help me programme well on machine?

A: Sure. You can provide your detailed sample drawing.engineer can programme well on

machine. Or in some machines, we will put into U-disc of operation video to help you.


Q3. Where is the factory located? How can I visit there?

A Our factory is located in Shenzhen City, Guangdong Province, China. With very convenient

transportation access, you can come by airplane or by high speed railway. And

warmly welcome you to visit us.


If you have another question, pls feel free to contact us as below.
