CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

Lathe Controller System Cnc Lathe


CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)
Send Inquiry



1000MC-3

Number of control axes

3 Axis

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Spindle functions

Gear, dual analog control, rigid tapping

Pre-reading function

Short line preprocessing 10,000 lines

FunctionATC+PLC and macro function
Encoder linesAny setting
User macro programYes
Our Services12 Months warranty；Provide professional CNC solutions；
Compensation functionKnife compensation, between compensation, screw compensation, radius compensation
Security function

Emergency stop, hardware travel limit, various stored travel checks, axis interlock, data backup and recovery

Compensation function

1) Pitch error compensation: 360 compensation points for each of X, Z, and Y axes, each point compensation amount ± 0.007 x compensation magnification

2) Tool compensation execution mode: moving tool/coordinate offset (can be set by parameters)

3) Tool compensation: 64 sets of tool length compensation

4) Tool nose radius compensation

5) Backlash compensation: (X, Z, Y axis) 0 mm~65535mm


1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC


7.-()

8.-&&()

9.-&()


FAQ

1. Can I trust you?

A: Sure, we're Alibaba verified supplier & Alibaba Trade Assurance Suppier.


2. How can we guarantee quality?

A: Always finishing a pre full testing by our professional engineers; Always final 100% Inspection before shipment.


3. What are your main products?A: CNC Controller/Servo Motor & Servo Driver/Spindle Servo Motor & Spindle Servo Drive/Robot Arms.


If you have another question, pls feel free to contact us as below.

Send Inquiry

FAQ

The following are the common questions we have collected about CNC Controller.
1. Q: What services do you provide?
+
A: We offer one-stop service. We can customize the most suitable processing solution based on your ideas and product drawings. We have partnerships with major shipping companies such as DHL, FEDEX, and UPS to ensure timely delivery. Products can be delivered to you within 3-6 business days.
2. Q: What can you do for CNC machine tool retrofit and upgrade?
+

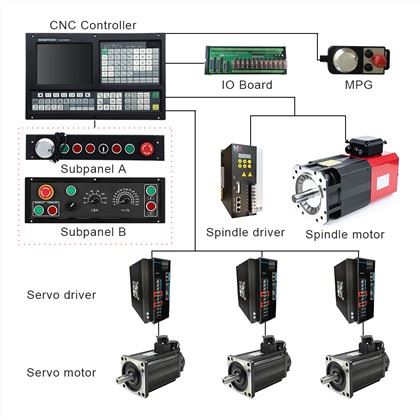

A: We can provide a complete CNC system. Our controller supports ATC and PLC and runs G-code. Support multiple languages, Russian, Spanish, English, Chinese, etc.The kit includes the controller, spindle servo motor and driver, servo motor drivers for each feed axis, and all standard cables, user manuals, and wiring diagrams. Our CNC control system is fully connected before shipment and tested 3-5 times for plug-and-play operation.
3. Q: What is your after-sales service like?
+
A: Our professional after-sales engineers provide 24-hour, one-on-one, free service. You don't have to worry about any after-sales issues.
4. Q: What optional accessories are available for CNC machine tools?
+
A: You can choose different accessories based on your machining needs. CNC Lathe:Servo turret, hydraulic chuck, manual chuck, Parts Catcher, Tailstock，guide bush,Flying knife disc,Tailstock,living tool,bar feeder, chip conveyor, etc. CNC Milling Machine: Fourth and fifth axis CNC rotary tables,Tailstock,BT30/BT40 holder, tool setters, probes, etc.
5.Q: How do you maintain the machine?
+
A: You must receive safety training before use. Regularly clean chips, check the air supply/oil pressure, lubricate the guideways, and inspect tool wear.
