CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800) 4) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

Cnc Controller Kit With Servos


CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800) 4) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes
Send Inquiry



1000MC-3

Number of control axes

3 axes

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Pre-reading function

Short line preprocessing 10,000 lines

Acceleration and deceleration function• Cutting feeding: Acceleration and deceleration
• Rapid traverse: Acceleration or deceleration
• Tapping
• The starting speed,finishing speed and time of acceleration and deceleration are set by parameter
FunctionATC+PLC and macro function
Encoder linesAny setting
User macro programYes
MenuEnglish menu
ApplicationCNC Lathe & Turning Machinery and especially automatic equipment
Our Services12 Months warranty；Provide professional CNC solutions；



1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

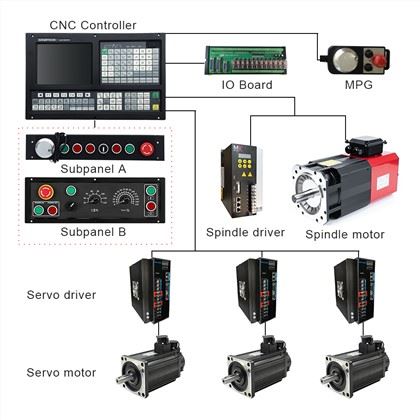

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.


7.-()

8.-&&()

9.-&()


FAQ

Q1: Who are we?

We are based in Guangdong, which providing cnc total solutions&Robot arm, sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).


Q2: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q3: What's the MOQ? 1 set.(Only some low cost machines will be more than 1 set)


Q4: Does your cnc support ATC function?

 Yes, our CNC lathe system can support most of turret, like Eletric turret,servo turret,counting turret,etc; We can edit special macro program & plc for special turrets also; And our CNC milling system support Linear type , umbrella type, arm type, turret type tool magazines.



If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement,  pls do not hesitate, we must do good support to you! come on!
