CNC lathe Controller: 1)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 2)Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch

With ATC+PLC Cnc Digital Lathe Controller


CNC lathe Controller: 1)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 2)Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch
Send Inquiry



1000MC-3

Number of control axes

3 axes

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Limit function

Software limit, hardware limit

Pre-reading function

Short line preprocessing 10,000 lines

Password protectionMulti-level password protection
PLC programmingThe user is free to design PLC function
Acceleration and deceleration controlLinear acceleration and deceleration, the number of additions and subtractions
FunctionATC+PLC and macro function
Encoder linesAny setting
User macro programYes
MenuEnglish menu
Produce time5~7 days except for Customized logo or package


1) 2/3/4/5 Aixs; 8.4inch; English menu;one years warranty;

2) Generally 5~7 days, excluding custom logo

3) 32 bits ARM microprocessor+FPGA Technology

4) Basic I/O:36X36,can be edited freely

5) cutter offset:C

6) Threading Cycle: Following Mode/Interpolate Mode

7) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)


ATC function：Electric Turret/Binary Turret/Servo Turret/Special Turret


PLC functions:

1) Support PLC warning and PLC alarm.

2) Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.


Spindle axis functions:

1) Encoder and spindle’s transmission ratio: (1 ~ 255):(1 ~ 255)

2) Spindle axis constant line speed control
3) Tapping circle, rigid tapping


Application : CNC Lathe & Turning Machinery and specially automatic equipment



1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

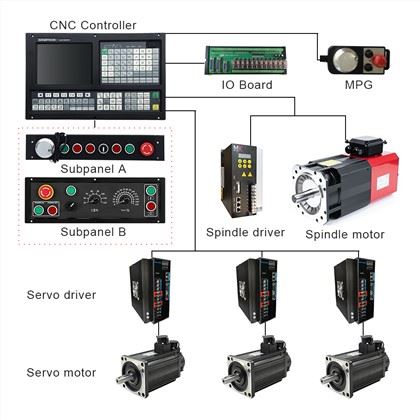

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.


7.-()

8.-&&()

9.-&()


FAQ

Q1. How to solve the quality problem after sales ?

A: Take photos or video of the problems and send to us after we check and confirm the problems , within 24 hours days , we will reply satisfied solution for you.


Q2. How can we guarantee quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment;


Q3. What is your MOQ;
A: At present, our MOQ is 1 set.


Q4. How about your after-sale service?

A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcom to you visit our company to learn and check the controller.



If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement,  pls do not hesitate, we must do good support to you! come on!
