GH-06060DC 600W SERVO MOTOR is 600W servo motor,1.9NM,3000RPM, specailly design with bigger and beautiful contour, large load , long-term continuous working in rated working mode.

GH Series 600w 1.9NM AC servo motor


GH-06060DC 600W SERVO MOTOR is 600W servo motor,1.9NM,3000RPM, specailly design with bigger and beautiful contour, large load , long-term continuous working in rated working mode.
Send Inquiry

GH Series Servo 600w 1.9NM 2500rpm AC servo motor driver with brake and cables for CNC1%1AH[DSI4(KRDN4Y5EQ@MM

Features

GH-06060DC 600W SERVO MOTOR is 600W servo motor,1.91NM,3000RPM, it can working with high precision servo drivers.

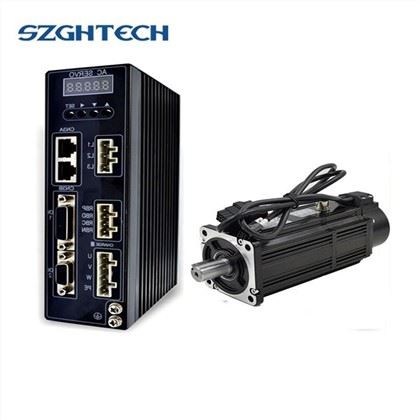

There is a type servo driver, GH-SD2010, that matching for 600W servo motor.


Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.

Motor ModelSZGH-06060DC
Rated Power(W)600
Rated Voltage(V)220
Rated Crrent(A)3.5
Rated Speed(RPM)3000
Rated Torque(NM)1.91
Peak Torque(NM)5.73
Voltage Constantv10r/min34
Torque Coefficient(NM/A)0.55
Rotor Inertia（Kg.m²）0.39*10
Line-Line Resistance（Ω）0.93
Line-Line Inductance(mH)10.7
Machanical Time-Constant(Ms)5.5
Encoder Resolution(PPR)2500
Insulation ClassClass B
Safety ClassIP65
The Operating of Evironmental ConditionTemperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)2.07

8(001)

9(001)

10

11

20210119100508f638db1644574756bc361fba8e4f6cae(001)

20210119100512f45f2f66edff40adb05e79916dfd372c(001)

2021011910051408fa774b887247b988421343478d4694(001)


FAQ

Q: May I know what’s the nearest airport from your company?

A: First Shenzhen Airport, then Guangzhou or Huizhou airport, welcome to visit us.

Q: When can I get the quotation?

A: We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.

Q: What about the lead time for mass production?

A: 6-8 working days for mass production. It depends on your quantity, and we will try our best to meet your needs.
