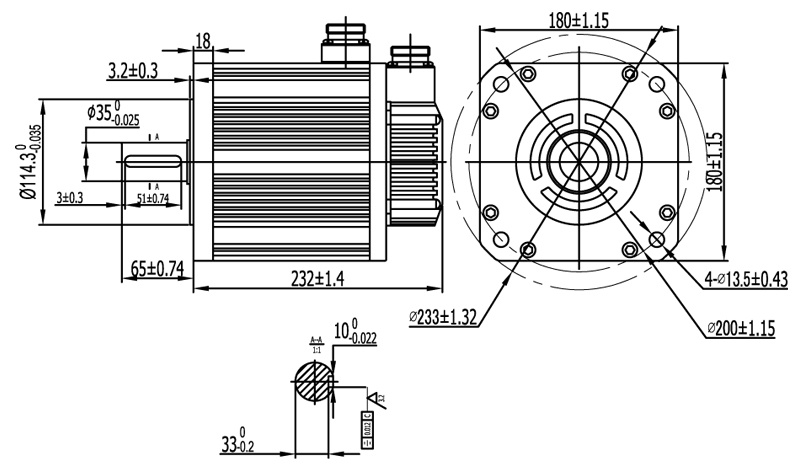

GH-18300CC SERVO MOTOR is 3000W ,180 flange, 19NM torque,1500RPM, it can be 220v or 380V two kinds. when you order, it need be requested.optimizing design, compact, beautiful contour, long-term continuous working in rated working mode and economic type , very wide of application to lots of industry .

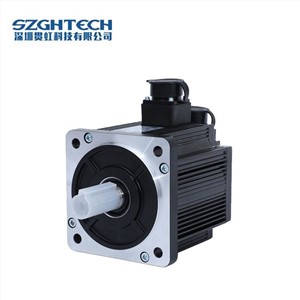

Single-Phase 3.0kw 19NM AC Servo Motor


GH-18300CC SERVO MOTOR is 3000W ,180 flange, 19NM torque,1500RPM, it can be 220v or 380V two kinds. when you order, it need be requested.optimizing design, compact, beautiful contour, long-term continuous working in rated working mode and economic type , very wide of application to lots of industry .
Send Inquiry

Single-Phase  3.0kw 19NM 1500rpm AC Servo Motor And  Driver For CNC Controller

Haa3dc96ae07547a6b2fa4dc2dd160083x

Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.


Motor Model ZSGH-18300CC
Rated Power(KW)3
Rated Voltage(V)220/380
Rated Crrent(A) 12/7.5
Rated Speed(RPM) 1500
Rated Torque(NM)19
Peak Torque(NM)47
Voltage Constantv10r/min 97/170
Torque Coefficient(NM/A)1.58/2.5
Rotor Inertia（Kg.m²）3.8*10
Line-Line Resistance（Ω）0.4/1.23
Line-Line Inductance(mH) 2.42/7.3
Machanical Time-Constant(Ms)6/5.93
Encoder Resolution(PPR) 2500
Insulation Class Class B
Safety ClassIP65
The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)20.5

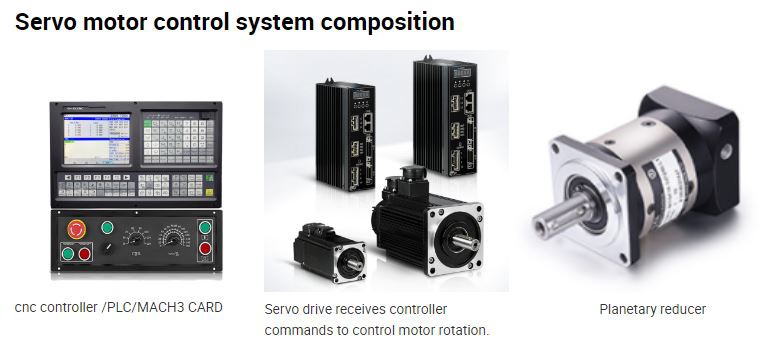

Servo System

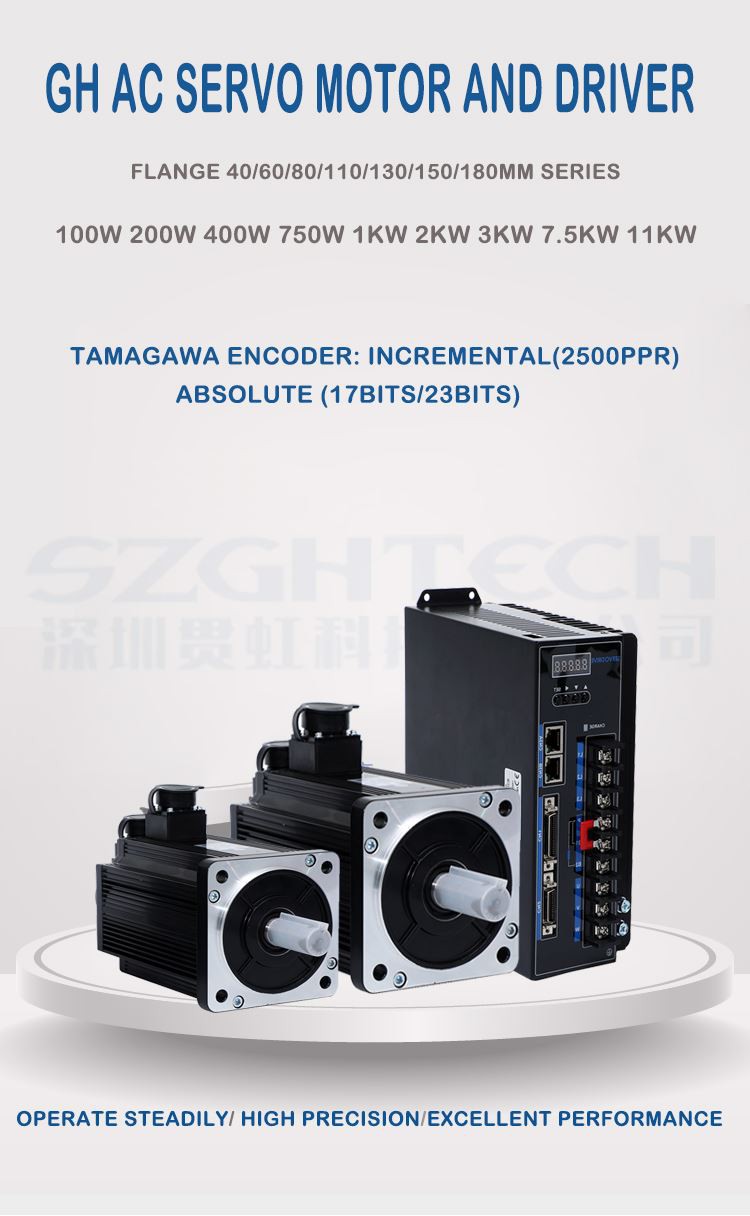

1.With Tamagawa encoder: Incremental(2500PPR/Absolute Servo Motor(17bits/23bits)

2.PositionControl:Pulse+Direction,Modbus:RS485/EtherCAT/Canopen/PowerLink



Servo motor advantages:

Especially suitable for metal cutting machine tools, packaging machinery, textile machinery, woodworking machinery, CNC machine tools, CNC bending machines, winding machines, robots, mechanical equipment and other automation equipment.


8(001)

_20210817162726

Hbc8c73dbe8b84a958399e641043246d9S

H6aada374ce7d45d883021e74cc0b9923f

]BVIN0(GRPITID%ZGU37~R5

_20210813174452


FAQ

Q: May I know what’s the nearest airport from your company?

A: First shenzhen Airport,,then guangzhou or huizhou airport,welcome to visit us.

Q: When can I get the quotation?

A: We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.

Q: What about the lead time for mass production?

A: 6-8 working days for mass production.It depends on your quantity,and we will try our best to meet your needs.


If you have any other question about our Single-Phase 3.0kw 19NM AC Servo Motor, pls feel free to contact us as below
