Our servo motors are suitable for helping machine tool feed axes to achieve extremely smooth operation and excellent acceleration and deceleration performance.

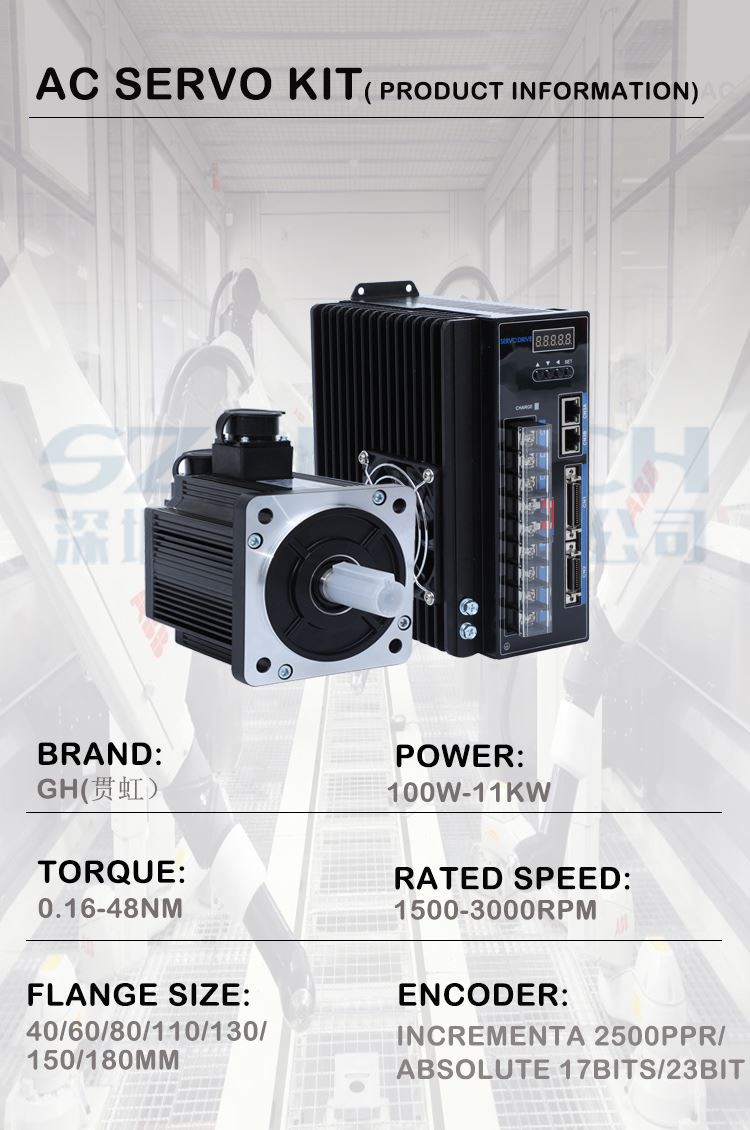

Mini 750w AC Servo Motor And Drive


Our servo motors are suitable for helping machine tool feed axes to achieve extremely smooth operation and excellent acceleration and deceleration performance.
Send Inquiry

Mini 750w AC Servo Motor And Drive for sewing machine

Hbd61397a57ea4b18a247b7a84f515431p


Features

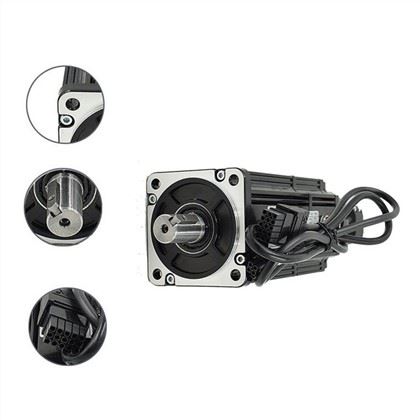

GH-09075DC is 750W low inertia serov motor,with 3000 rpm , good movement stability, low noise, and no vibration, easy to installation and operation.


advantage

The use of high protection grade such as IP65 ensures that the motor can be used reliably under ambient temperature of -15℃～40℃ and dust and oil mist environment.

The use of high-precision bearings and rotor high-precision dynamic balance technology ensures that the motor runs stably and reliably within the highest speed range, with low vibration and low noise.


Motor Model SZGH-09075DC
Rated Power(W)750
Rated Voltage(V)220
Rated Crrent(A) 3.0
Rated Speed(RPM) 3000
Rated Torque(NM)2.4
Peak Torque(NM)7.1
Voltage Constantv10r/min 51
Torque Coefficient(NM/A)0.8
Rotor Inertia（Kg.m²）2.45*10
Line-Line Resistance（Ω）3.2
Line-Line Inductance(mH) 7
Machanical Time-Constant(Ms)2.2
Encoder Resolution(PPR) 2500
Insulation Class Class B
Safety ClassIP65
The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)3.1


_20210817162726

Hbc8c73dbe8b84a958399e641043246d9S

H6aada374ce7d45d883021e74cc0b9923f

]BVIN0(GRPITID%ZGU37~R5

_20210813174452




FAQ

Q: May I know what’s the nearest airport from your company?

A: First shenzhen Airport,,then guangzhou or huizhou airport,welcome to visit us.

Q: When can I get the quotation?

A: We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.

Q: What about the lead time for mass production?

A: 6-8 working days for mass production.It depends on your quantity,and we will try our best to meet your needs.


If you have any other question about our Mini 750w AC Servo Motor And Drive, pls feel free to contact us as below!
