SZGH provide you with completely Robot solutionapplicated to welding, spray, yards , handling,grinding, loading and so on : 1) Robot arm can support 4 axis to 11 axis ,750mm-3100mm reaching , widely use to welding,painting, handling, loading and unloading, and plasma cutting, and grinding application. it can save your cost from manpower,also more effeiction and safe operation , higher precision, it can work 24 hours for you!! 2)Ethercat & modbus robot controller , High precision 23bit servo and Ethercat servo driver , RV Reducer or Harmonic reducer etc

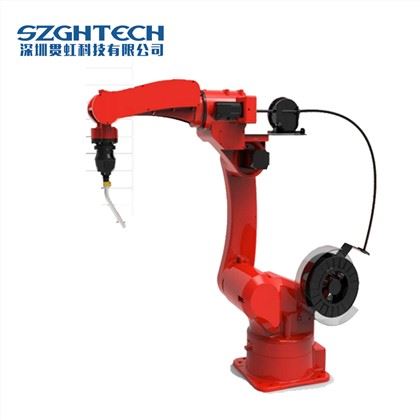

Mig Welding Robot


SZGH provide you with completely Robot solutionapplicated to welding, spray, yards , handling,grinding, loading and so on : 1) Robot arm can support 4 axis to 11 axis ,750mm-3100mm reaching , widely use to welding,painting, handling, loading and unloading, and plasma cutting, and grinding application. it can save your cost from manpower,also more effeiction and safe operation , higher precision, it can work 24 hours for you!! 2)Ethercat & modbus robot controller , High precision 23bit servo and Ethercat servo driver , RV Reducer or Harmonic reducer etc
Send Inquiry





        Model

SZGH-H2100-B-6

       Payload6kg

       Reach

2100mm

         Axes

6-11

    Application

welding

      AtructureArticulated

  Special Service

1. We can customize the standard color as you need!
2. We can customize your company logo!

   After Warran

Video technical supports , Online supports

                                                                      Packing list
Robot body 1 set
Robot teach Pendant1 set
Servo motor 6 pcs
Servo driver 6 pcs
RV gear box or  Harmonic gear box 6 pcs
Electrical cabinet1 pcs
Welding machine  and torch gun1 set
Isolation transformer and wire feeding and other spare parts 1 set


1.-&-

2.--

4.-

Features：

1) Modular setting of functionssuitable for diverse applications. 8-axis control realizes the control of external axes (traveling axes and positioner).

2) Suitable for multiple increments; absolute servo.
Open structure for synchronization of international technology and extension of functions.

3) Software PLC functions facilitate logic control.

5.--

6.


8.（）

9.-()

10.-&&()

11.-&（）

12.FAQ()



1. What information do you need to give me proper recommendation?
Answer: In order to recommend you the suitable machine model, please send us the detailed information regarding your product.Like material, thickness, welding position, minimum and maximum size of product, welding requirement, etc. It would be better if you could send us your product drawings. Then our engineer will recommend you the machine according to your welding requirement.


2. Can you provide customized service for our product?
Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.


3. What can you buy from us?

Answer: Industrial Robot Arms for welding, painting&spraying, handling materials/Pick and place, or grinding or other customized solution.


If you have any questions, pls feel free to contact me below.


Send Inquiry

FAQ

The following are the common questions we have collected about Robot Arm.
Q1. What materials can robotic laser welding handle?
+
A1:Robotic laser welding works excellently on carbon steel, stainless steel, and titanium. It can also weld aluminum and copper, but these highly reflective materials require more powerful lasers and precise parameter control to overcome their reflective nature.
Q2. How precise do the parts need to be?
+
A2:Extremely precise. Laser welding focuses energy on a tiny spot, so gaps between parts must be minimal. High-precision fixtures are mandatory to hold parts perfectly, as even a small gap can lead to burn-through or a weak weld.
Q3. Why choose robotic laser welding over MIG or TIG?
+
A3:Choose it for speed, precision, and minimal heat. It's significantly faster than TIG and MIG, creates very narrow welds, and puts so little heat into the part that there is almost no distortion. It is ideal for high-volume, high-quality applications where aesthetics and part integrity are critical.
Q4. What materials can robotic laser welding handle?
+
A4:Robotic laser welding works excellently on carbon steel, stainless steel, and titanium. It can also weld aluminum and copper, but these highly reflective materials require more powerful lasers and precise parameter control to overcome their reflective nature.
Q5. How precise do the parts need to be?
+
A5:Extremely precise. Laser welding focuses energy on a tiny spot, so gaps between parts must be minimal. High-precision fixtures are mandatory to hold parts perfectly, as even a small gap can lead to burn-through or a weak weld.
Q6. Why choose robotic laser welding over MIG or TIG?
+
A6:Choose it for speed, precision, and minimal heat. It's significantly faster than TIG and MIG, creates very narrow welds, and puts so little heat into the part that there is almost no distortion. It is ideal for high-volume, high-quality applications where aesthetics and part integrity are critical.
Q7: How can robotic TIG welding solve my challenges with consistent, high-integrity welds on critical components?
+
A7: Human fatigue and subtle variations are the biggest enemies of perfect welds. Our robotic Tig welding systems eliminate this. The robot precisely repeats the exact same arc length, travel speed, and filler metal placement every single time. This means: Zero Defects: Drastically reduces porosity, undercut, and inconsistencies. Perfect Penetration: Ensures optimal weld penetration for maximum strength, which is crucial for aerospace, medical, or automotive applications. Flawless Aesthetics: Delivers a clean, shiny, and uniform bead that requires little to no post-weld finishing, enhancing the value of your product.
Q8: My current welding process is too slow and expensive. How does robotic TIG welding provide a fast Return on Investment (ROI)?
+
A8: While manual TIG is slow and skill-dependent, automation transforms your cost structure. The ROI comes from multiple streams: Dramatically Higher Throughput: The robot works 24/7 without breaks, welding significantly faster than even the most skilled human. Massive Material Savings: Precise control means you use exactly the right amount of expensive filler metal and shielding gas, eliminating waste. Reduced Rework & Scrap: Superior consistency means you spend less time and money fixing bad welds or scrapping expensive parts. Most of our clients see a full ROI in under 12 months.
Q9: My production involves complex parts and short runs. Isn't robotic welding only for high-volume, simple tasks?
+
A9: That's a common myth! Modern robotic TIG cells are built for flexibility. With features like: Easy Programming: User-friendly touchscreen interfaces and lead-through teaching allow you to program complex paths in minutes, not hours. Advanced Seam Tracking: The system can automatically find and follow the weld joint, compensating for part misalignment or thermal distortion. Quick-Change Tooling: Switch fixtures rapidly to weld different components in the same cell.
