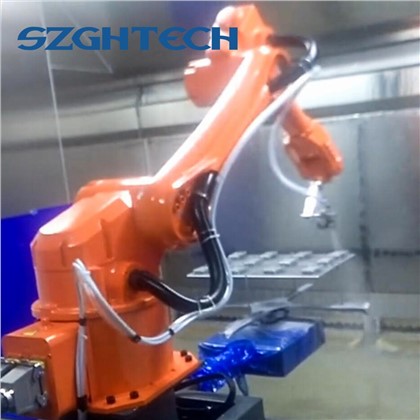

SZGH-P1950-B-6 is a painting robot produced by company. Featuring dust-proof, waterproof and certain advantages in motion range, it is generally used in applications with adverse painting environment and helps improve the employment and working environment of an enterprise significantly.

Robotic Spray Arm


SZGH-P1950-B-6 is a painting robot produced by company. Featuring dust-proof, waterproof and certain advantages in motion range, it is generally used in applications with adverse painting environment and helps improve the employment and working environment of an enterprise significantly.
Send Inquiry


SZGH-P1950-B-6

Product Description

Axes

6-11 Axes

Payload6KG

Application

Parnting and spraying

Special Service

1. We can customize the standard color as you need!
2. We can customize your company logo!

After Warran

Video technical supports , Online supports

Reach1950mm
Mounting TypeGround, bracket ,ceiling

The 1950mm industrial spraying robot is a high-performance automation equipment that can be widely used in various spraying scenarios, such as automobile manufacturing, machinery manufacturing, architectural decoration and other fields. The robot has the following functions:

1. Precise spraying: The robot is equipped with high-precision sensors and control systems, which can achieve precise spraying and ensure coating quality and efficiency.

2. Automated operation: The robot has the ability to operate automatically, which can replace manual spraying operations to improve production efficiency and reduce costs.

3. High reliability: The robot uses high-quality materials and components, which have good corrosion resistance and durability, ensuring long-term stable operation of the machine.

4. Flexible adjustability: The robot can be adjusted and customized according to different spraying requirements, including spraying angle, spraying speed, spraying volume and other parameters.


Case Studies

An automobile manufacturing company needs to carry out a large number of spraying operations on automobile bodies. Traditional manual spraying requires a lot of manpower input, which is inefficient and prone to problems such as uneven coating. In order to improve production efficiency and quality, the company decided to use a 1950mm industrial spraying robot for automatic spraying.


After using the robot, the company found that the spraying efficiency has increased by nearly 3 times, and the coating quality has also been significantly improved. At the same time, the speed and angle of robot spraying can be precisely controlled, which not only reduces the cost of spraying, but also improves the overall appearance quality of the product. Therefore, the company decided to purchase multiple 1950mm industrial spraying robots for production in order to improve production efficiency and product quality.

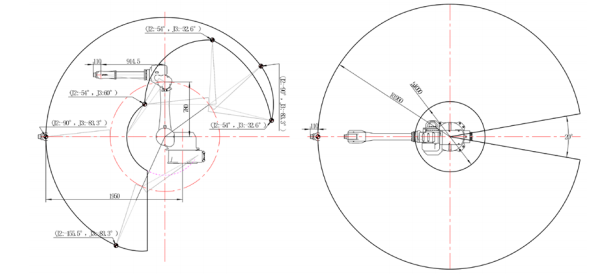

Robot Motion Range

cba132bd7258ed5882e0750d3cf42c2

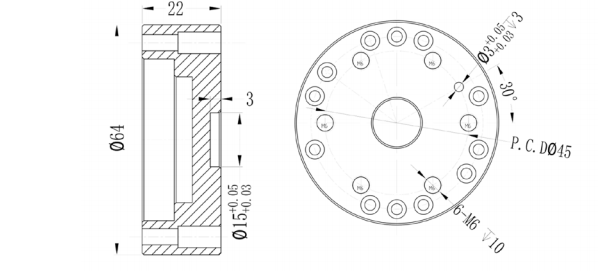

Robot Flange Connection

5997c653aa698cd45a8d99d95e4d178

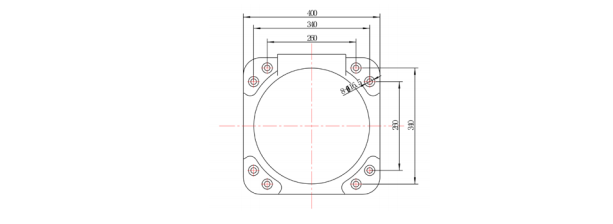

Robot Base Installation

9c36baba8bedcb644f781b05f5a38c6


If you have any questions or you have any need, please feel free to contact me.We will reply you warmly.
