CNC lathe Controller:
1)With USB interface ,it supports file operation in flash disk,system configuration and software upgrade
2)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V
3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch

Cnc Controller With Usb Interface

CNC lathe Controller: 1)With USB interface ,it supports file operation in flash disk,system configuration and software upgrade 2)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch

1000MC-3

Number of control axes	4 axes
Minimum programming	0.001mm
Display	8.4 inch color screen
interface	USB+RS232 Communction Port
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Function	ATC+PLC and macro function
Encoder lines	Any setting
User macro program	Yes
Menu	English menu
User macro program:	Have

1)Threading Cycle: Following Mode/Interpolate Mode

2) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

3) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

4) Scanning Function & Auto Tool Setter/Probe

5) Support ATC(ATC function is Electric Turret/Binary Turret/Servo Turret/Special Turret),

6) Support Macro function

7) PLC function(PLC program download by USB interface,PLC program can be customized edited and edit freely)

1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

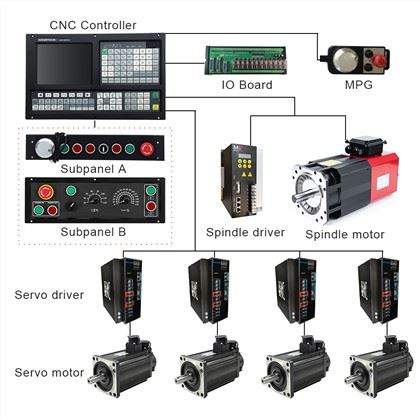

We can provide you with a complete set of customized CNC kits,

which is very convenient and efficient for you.

GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.

7.-()

8.-&&()

9.-&()

FAQ

Q1: Does it support English vesion?
A: Yes It support ENGLISH-CHINESE MANUAL

Q2: How to select the CNC controller?

You have info us what is the CNC model and type,and let us know motor range ,we will help to select.

Q3: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .

Q4: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.

Q5: How is delivery time?
A: Generally it takes 7-15 days for regular type , for big quantity or OEM/ODM orders, pls negotiate with sales.

Q6: What's your payment terms?
A: We accept T/T, L/C, ALI TRADE ASSURANCE, cash.

If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement, pls do not hesitate, we must do good support to you! come on!
