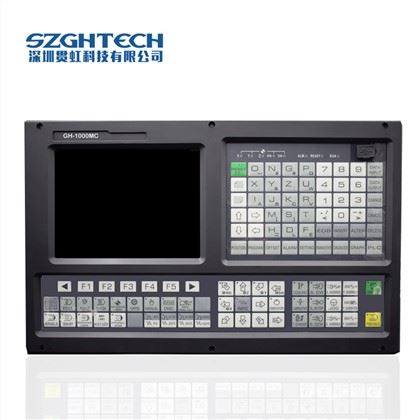

Customized Professional 4 axis analog cnc lathe controlller kit for Vertical Precision Metal Mould 4 Axis CNC Matchine cnc lathe controller board kit

Similar as GSK 4 axis CNC lathe controller


Customized Professional 4 axis analog cnc lathe controlller kit for Vertical Precision Metal Mould 4 Axis CNC Matchine cnc lathe controller board kit
Send Inquiry

Similar as GSK 4 axis CNC lathe controller3

Number of control axes

4 axes (X, Z, Y ,A)

Minimum programming

0.001mm

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Manual continuous

One axis or simultaneous multi-axis

Interpolation method

Straight line, arc, thread interpolation

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Handwheel functions

Panel type, plug-in hand-held

Screen saver function

Screen saver function

Communication function

RS232, U disk interface

Compensation function

Knife compensation, between compensation, screw compensation, radius compensation

Program editing

Male / English, relative / absolute programming

Limit function

Software limit, hardware limit

Pre-reading function

Short line preprocessing 10,000 lines

Password protection

Multi-level password protection

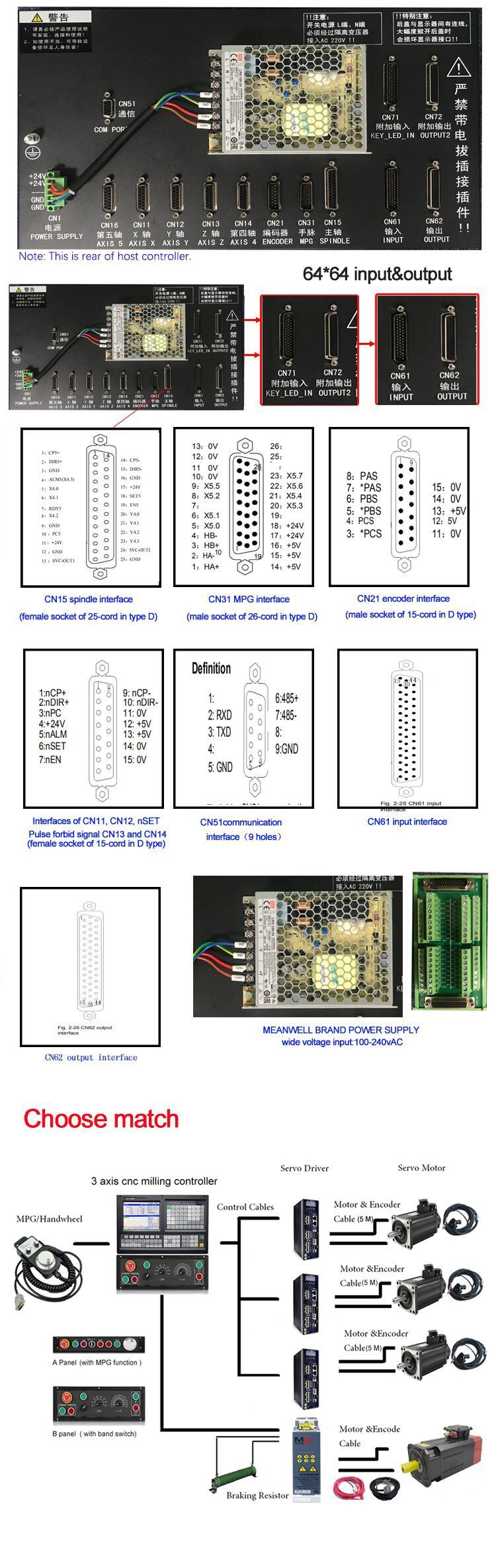

Input and output

I / O point 24X24

PLC programming

The user is free to design PLC function

Acceleration and deceleration control

Linear acceleration and deceleration, the number of additions and subtractions

Encoder lines

Any setting

User macro program

Yes

Electronic gear functions

Yes

Number of control axes

4axes (X, Z ,Y ,A)

Minimum programming

0.001mm

Product features


User's storage is 128M and could be infinite number of program

Abosolute type of motor (17bits multi circle) controlling technology

The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min

The cycle of interpolation is 2ms, controlling accuracy is 0.1um


All closed-loop with grating ruler control and the accuracy is <2um


Preread the short line program to satisfy with high speed engraving and cutting

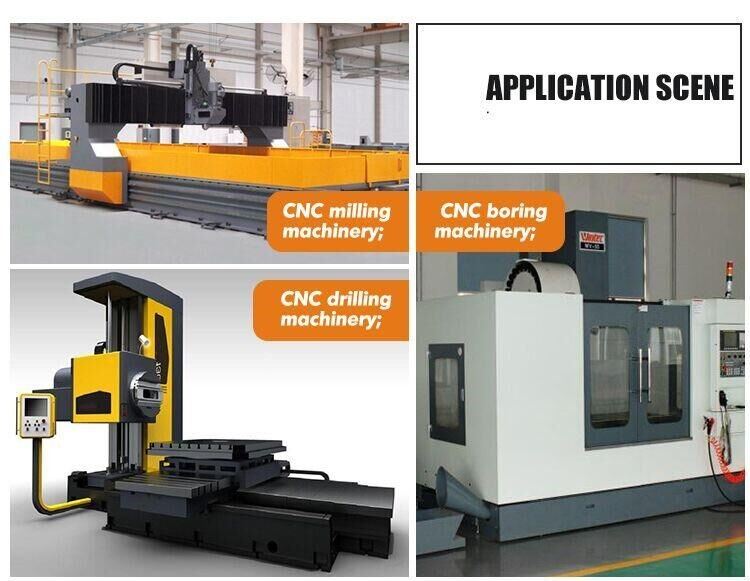

Application: CNC Lathe & Turning Machinery and specially automatic equipment


01

QQ20210701150818

QQ20210701150800

GH always do good product and service to our clients.


FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer cnc system products. And we trade our products with our clients directly.



Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.



Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.



Q: How many different types of products your company manufactures?

A: Now we have more than 300 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.



Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.



If you have another question, pls feel free to contact us as below.
