CNC lathe Controller: 1)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 2)Threading Cycle: Following Mode/Interpolate Mode 3)Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

4 Axis Cnc Lathe Controller Similar GSK Panel


CNC lathe Controller: 1)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 2)Threading Cycle: Following Mode/Interpolate Mode 3)Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes
Send Inquiry



1000MC-3

Number of control axes

4 axes

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Manual continuous

One axis or simultaneous multi-axis

Interpolation method

Straight line, arc, thread interpolation

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Limit function

Software limit, hardware limit

Acceleration and deceleration control

Linear acceleration and deceleration, the number of additions and subtractions

Support Built-in standard PLC program,and can be customized edited according to customer's askes

Electronic gear functions

Yes

FunctionATC+PLC and macro function


GH controller uses a high-performance dual-core CPU and ultra-large-scale programmable gate array integrated circuit chip FPGA to form the control core to realize μ-level precision motion control. The brand-new controller panel, equipped with an 800*600 dot matrix 8.4-inch true color LCD screen, coupled with a newly designed display interface, has been highly praised by many customers.


PLC functions:

1）Two levels PLC programming, operation speed is 1.5μs/ step basic instruction; 4700 steps mostly, the cycle of the first level programming is 8ms.
2）Support PLC warning and PLC alarm.
3）Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.


Spindle axis functions:

1) Spindle ration: 50% ~ 120% eight stages real-time tunning in total
2) Spindle axis constant line speed control
3) Tapping circle, rigid tapping


Application : CNC Lathe & Turning Machinery and specially automatic equipment



1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

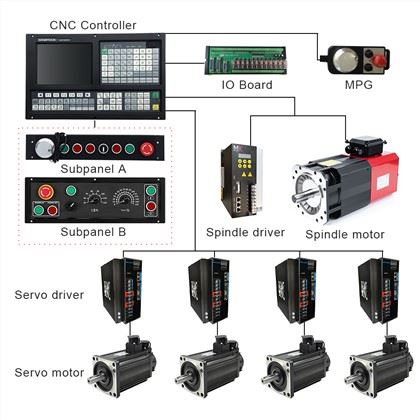

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.


7.-()

8.-&&()

9.-&()
