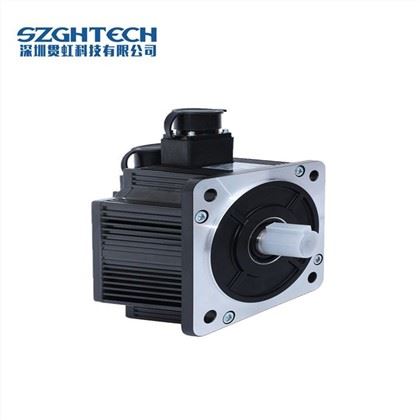

SZGH-13200CC is 2000W AC servo motor, 2500RPM, 7.7NM, it has high performance rare earth permanent magnet material.

GH Single phase 2kw 7.7NM AC Motor


SZGH-13200CC is 2000W AC servo motor, 2500RPM, 7.7NM, it has high performance rare earth permanent magnet material.
Send Inquiry

1%1AH[DSI4(KRDN4Y5EQ@MM

01

Features

SZGH-13200CC is 2000W AC servo motor, it has high performance rare earth permanent magnet material, high power, large load.

There are two kinds type servo driver, SZGH-050M2 & SZGH-301 that matching for 2.0KW servo motor.

There is also one dual servo driver,SZGH-302,that can control two pcs of 2.0KW servo motors synchronously.


Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.


Motor Model SZGH-04005DC
Rated Power(W)50
Rated Voltage(V)220
Rated Crrent(A) 0.4
Rated Speed(RPM) 3000
Rated Torque(NM)0.16
Peak Torque(NM)0.32
Voltage Constantv10r/min 36.8
Torque Coefficient(NM/A)0.4
Rotor Inertia（Kg.m²）0.025*10
Line-Line Resistance（Ω）108
Line-Line Inductance(mH) 108
Machanical Time-Constant(Ms)1
Encoder Resolution(PPR) 2500
Insulation Class Class B
Safety ClassIP65
The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
