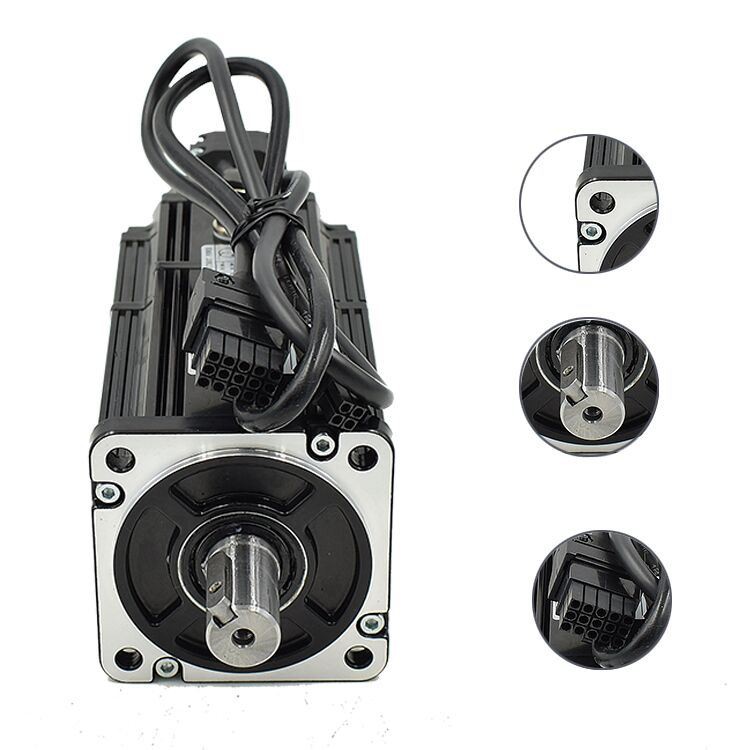

GH-06040DC is 400W servo motor,optimizing design, compact,beautiful contour, this model is very hot sale , optimum matching with our AC servo driver to realize optimum servo performance

Ac Servo Motor Applications 400W 1.27Nm


GH-06040DC is 400W servo motor,optimizing design, compact,beautiful contour, this model is very hot sale , optimum matching with our AC servo driver to realize optimum servo performance
Send Inquiry

Ac Servo Motor Applications 400W  1.27Nm 3000rpm In  CNC Controller And Ac Servo System

`M8AR_2R@BHJ$0XG)NN0A40

Features

GH-06040DC is 400W servo motor,optimizing design, compact,beautiful contour,long-term continuous working in rated working mode and economic type,very wide of application to lots of industry .

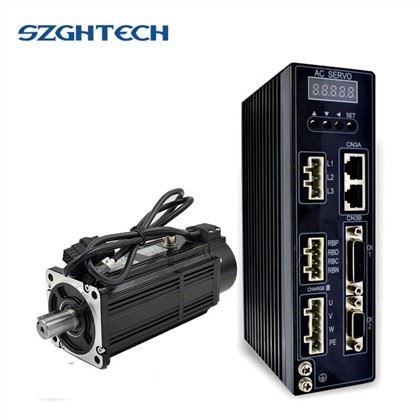

There is a type servo driver GH-SD2004,that matching for 400W servo motor.


Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.


Motor Model SZGH-06040DC
Rated Power(W)400
Rated Voltage(V)220
Rated Crrent(A) 2.8
Rated Speed(RPM) 3000
Rated Torque(NM)1.27
Peak Torque(NM)3.89
Voltage Constantv10r/min 29.6
Torque Coefficient(NM/A)0.45
Rotor Inertia（Kg.m²）0.29*10
Line-Line Resistance（Ω）2.35
Line-Line Inductance(mH) 14.5
Machanical Time-Constant(Ms)6.17
Encoder Resolution(PPR) 2500
Insulation Class Class B
Safety ClassIP65
The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)1.6

8(001)

9(001)

10

11

20210119100508f638db1644574756bc361fba8e4f6cae(001)

20210119100512f45f2f66edff40adb05e79916dfd372c(001)

2021011910051408fa774b887247b988421343478d4694(001)
